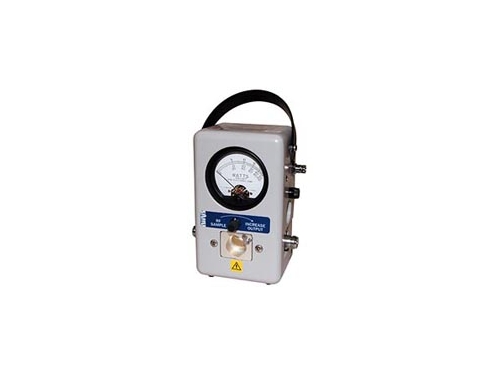

Accurate CW field power measurement while providing a variable RF tap for signal analysis or monitoring
· Uses industry standard Bird elements with space to store 2 additional within the meter housing
· Rugged metal housing for the most demanding environments
Quick Change (QC) connectors to minimize the need for adaptors when making critical measurements
Power and Frequency Range |
5 kW max. 2-30 MHz 1 kW max. 30-1000 MHz using Bird® Plug-in Elements |
| Accuracy | ± 5% of full scale |
| Insertion VSWR | N Connectors 1.07 max. to 1000 MHz |
| Insertion Loss | 0.1 dB max. (2-512 MHz) 0.2 dB max.(512-1000 MHz) |
| RF Sample Output | Variable -15 to -70 dB from BNC (Female) port |
| Connectors | QC Type (Female N normally supplied) |
| Finish | Gray Powder Coat |
| Nominal Size [inches (mm)] | 6-7/8" x 5-1/8" x 3-5/8", including connectors (H x W x D) 175 x 130 x 92 mm |
| Weight | 4 lbs. (1.8 kg) |
